製品紹介
WASHING M/C
GW WASHING M/C
DIPPING TYPE : ROBOT
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | DIPPING |
| 3 - ST | WASHING |
| 4 - ST | AIR BLOW |
| 5 - ST | AIR BLOW |
| 6 - ST | UNLOAD’G |
| Type | Dipping Type | ||
|---|---|---|---|
| Work Transfer | ATT’ Conveyor +Robot | ||
| Load’g & Unload’g | Robot | ||
| Cycle Time | 180 sec/ea | ||
| Washing pressure | 20kg/㎠ | ||
| Rinsing pressure | 20kg/㎠ | ||
| Max. contaminate | Maker specification | ||
| Air Blow pressure | 2.5 ~3.5 kg/㎠ | ||
| Filtering System | 1st | Drum Filter. 60μ | |
| 2nd | Bag Filter. 25μ | ||
| 3rd | Not | ||
| Bed | BEDでは溶接構造物で耐久性及び精度安定化 | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | Water | Dirty Tank. 2500L Clean Tank. 2000L |
| Air | 27,000 L/min | ||
GW HIGH PRESSURE WASHING M/C
DIPPING TYPE : ROBOT
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | DIPPING |
| 3 - ST | WASHING |
| 4 - ST | AIR BLOW |
| 5 - ST | AIR BLOW |
| 6 - ST | HOT BLOW |
| 7 - ST | UNLOAD’G |
| Type | Dipping Type | ||
|---|---|---|---|
| Work Transfer | ATT’ Conveyor +Robot | ||
| Load’g & Unload’g | Robot | ||
| Cycle Time | 180 sec/ea | ||
| Washing pressure | 20 ~ 300kg/㎠ | ||
| Rinsing pressure | 20kg/㎠ | ||
| Max. contaminate | Maker specification | ||
| Air Blow pressure | 2.5 ~3.5 kg/㎠ | ||
| Filtering System | 1st | Drum Filter. 60μ | |
| 2nd | Bag Filter. 25μ | ||
| 3rd | Not | ||
| HOT BLOW | 20 m/min, 170 mmAq | ||
| Bed | BEDでは溶接構造物で耐久性及び精度安定化 | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | Water | Dirty Tank. 2500L Clean Tank. 2000L |
| Air | 27,000 L/min | ||
D16 DTF WASHING M/C
TUNNEL TYPE : CONVEYOR + PALLET
| STN | NAME |
|---|---|
| 1 - ST | IN CONVEYOR |
| 2 - ST | IDLE |
| 3 - ST | IDLE |
| 4 - ST | WASHING |
| 5 - ST | WASHING |
| 6 -ST | AIR BLOW |
| 7 -ST | AIR BLOW |
| 8 -ST | IDLE |
| 9 -ST | UN LOAD’G |
| Type | Tunnel Type | ||
|---|---|---|---|
| Work Transfer | Roller Conveyor + Pallet Conveyor + Auto Loader | ||
| Load’g & Unload’g | Auto Loader | ||
| Cycle Time | 120 sec/ea | ||
| Washing pressure | 20kg/㎠ | ||
| Rinsing pressure | 20kg/㎠ | ||
| Max. contaminate | Maker specification | ||
| Air Blow pressure | 2.5 ~3.5 kg/㎠ | ||
| Filtering System | 1st | Drum Filter. 60μ | |
| 2nd | Bag Filter. 25μ | ||
| 3rd | Not | ||
| Bed | BEDでは溶接構造物で耐久性及び精度安定化 | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | Water | Dirty Tank. 2500L Clean Tank. 2000L |
| Air | 27,000 L/min | ||
D16 DTF High pressure WASHING M/C
TRANSFER TYPE : LIFT + CARRY
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | WASHING |
| 3 - ST | IDLE |
| 4 - ST | AIR BLOW |
| 5 - ST | AIR BLOW |
| 6 -ST | IDLE |
| 7 -ST | UNLOAD’G |
| Type | Tunnel Type | ||
|---|---|---|---|
| Work Transfer | Roller Conveyor + Auto Loader | ||
| Load’g & Unload’g | Auto Loader | ||
| Cycle Time | 120 sec/ea | ||
| Washing pressure | 20 ~ 350 kg/㎠ | ||
| Rinsing pressure | 20kg/㎠ | ||
| Max. contaminate | Maker specification | ||
| Air Blow pressure | 2.5 ~3.5 kg/㎠ | ||
| Filtering System | 1st | Drum Filter. 60μ | |
| 2nd | Bag Filter. 25μ | ||
| 3rd | Not | ||
| Bed | BEDでは溶接構造物で耐久性及び精度安定化 | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | Water | Dirty Tank. 2500L Clean Tank. 2000L |
| Air | 27,000 L/min | ||

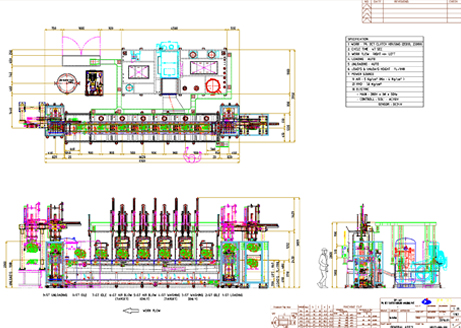

7 DCT CLUTCH HOUSING WASHING M/C
TUNNEL TYPE : CONVEYOR + PALLET
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | IDLE (ROOM) |
| 3 - ST | WASHING |
| 4 - ST | RINSE |
| 5 - ST | AIR BLOW |
| 6 -ST | AIR BLOW (TARGET) |
| 7 -ST | IDLE (ROOM) |
| 8 -ST | IDLE |
| 9 -ST | UNLOAD’G |
| Type | Tunnel Type | ||
|---|---|---|---|
| Work Transfer | Work Pallet Return Conveyor | ||
| Load’g & Unload’g | Auto Loader (With Pallet Lifter) | ||
| Cycle Time | 50 sec/ea | ||
| Washing pressure | 20 kg/㎠ | ||
| Rinsing pressure | 20kg/㎠ | ||
| Max. contaminate | Maker specification | ||
| Air Blow pressure | 2.5 ~3.5 kg/㎠ | ||
| Filtering System | 1st | Drum Filter. 60μ | |
| 2nd | Bag Filter. 25μ | ||
| 3rd | Not | ||
| Bed | BEDでは溶接構造物で耐久性及び精度安定化 | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | Water | Dirty Tank. 2500L Clean Tank. 2000L |
| Air | 27,000 L/min | ||
5, 6 DCT CLUTCH HOUSING WASHING M/C
TUNNEL TYPE : CONVEYOR + PALLET
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | IDLE (ROOM) |
| 3 - ST | WASHING |
| 4 - ST | WASHING (TARGET) |
| 5 - ST | AIR BLOW |
| 6 -ST | AIR BLOW (TARGET) |
| 7 -ST | IDLE (ROOM) |
| 8 -ST | IDLE |
| 9 -ST | UNLOAD’G |
| Type | Tunnel Type | ||
|---|---|---|---|
| Work Transfer | Work Pallet Return Conveyor | ||
| Load’g & Unload’g | Auto Loader (With Pallet Lifter) | ||
| Cycle Time | 50 sec/ea | ||
| Washing pressure | 20 kg/㎠ | ||
| Rinsing pressure | 20kg/㎠ | ||
| Max. contaminate | Maker specification | ||
| Air Blow pressure | 2.5 ~3.5 kg/㎠ | ||
| Filtering System | 1st | Drum Filter. 60μ | |
| 2nd | Bag Filter. 25μ | ||
| 3rd | Not | ||
| Bed | BEDでは溶接構造物で耐久性及び精度安定化 | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | Water | Dirty Tank. 2500L Clean Tank. 2000L |
| Air | 27,000 L/min | ||
DU MOTOR HOUSING WASHING M/C
TUNNEL TYPE : LIFT + CARRY
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | IDLE |
| 3 - ST | WASHING |
| 4 - ST | AIR BLOW |
| 5 - ST | AIR BLOW |
| 6 -ST | IDLE |
| 7 -ST | UNLOAD’G |
| Type | Tunnel Type | ||
|---|---|---|---|
| Work Transfer | Conveyor (LIFT + CARRY) | ||
| Load’g & Unload’g | Auto Loader | ||
| Cycle Time | 200 sec/ea | ||
| Washing pressure | 20 kg/㎠ | ||
| Rinsing pressure | 20kg/㎠ | ||
| Max. contaminate | Maker specification | ||
| Air Blow pressure | 2.5 ~3.5 kg/㎠ | ||
| Filtering System | 1st | Drum Filter. 60μ | |
| 2nd | Bag Filter. 25μ | ||
| 3rd | Not | ||
| Bed | BEDでは溶接構造物で耐久性及び精度安定化 | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | Water | Dirty Tank. 2500L Clean Tank. 2000L |
| Air | 27,000 L/min | ||
KAPPA CYL HEAD WASHING M/C
TRANSFER TYPE : SLIDE + AUTO LOADER
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | WASHING |
| 3 - ST | AIR BLOW |
| 4 - ST | AIR BLOW |
| 5 - ST | UNLOAD’G |
| Type | Tunnel Type | ||
|---|---|---|---|
| Work Transfer | Slide(with Pallet) + Auto Loader | ||
| Load’g & Unload’g | Auto Loader | ||
| Cycle Time | 55 sec/ea | ||
| Washing pressure | 20 kg/㎠ | ||
| Rinsing pressure | 20kg/㎠ | ||
| Max. contaminate | Maker specification | ||
| Air Blow pressure | 2.5 ~4.5 kg/㎠ | ||
| Filtering System | 1st | Drum Filter. 60μ | |
| 2nd | Bag Filter. 25μ | ||
| 3rd | Not | ||
| Bed | BEDでは溶接構造物で耐久性及び精度安定化 | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | Water | Dirty Tank. 2500L Clean Tank. 2000L |
| Air | 27,000 L/min | ||

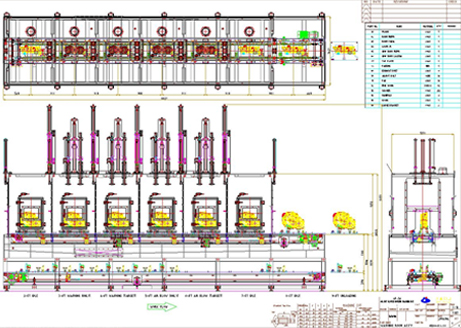

GAMMA LADDER FRAME WASHING M/C
TUNNEL TYPE : CONVEYOR + PALLET
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | IDLE(ROOM) |
| 3 - ST | WASHING |
| 4 - ST | WASHING (TARGET) |
| 5 - ST | AIR BLOW |
| 6 - ST | AIR BLOW (TARGET) |
| 7 - ST | IDLE |
| 8 - ST | UNLOAD’G |
| Type | Tunnel Type | ||
|---|---|---|---|
| Work Transfer | Pallet Conveyor | ||
| Load’g & Unload’g | Auto Loader | ||
| Cycle Time | 40 sec/ea | ||
| Washing pressure | 20 kg/㎠ | ||
| Rinsing pressure | 20kg/㎠ | ||
| Max. contaminate | Maker specification | ||
| Air Blow pressure | 2.5 ~ 3.5 kg/㎠ | ||
| Filtering System | 1st | Drum Filter. 60μ | |
| 2nd | Bag Filter. 25μ | ||
| 3rd | Not | ||
| Bed | BEDでは溶接構造物で耐久性及び精度安定化 | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | Water | Dirty Tank. 2500L Clean Tank. 2000L |
| Air | 27,000 L/min | ||
SHOCK ABSORBER HSG WASHING M/C
TUNNEL TYPE : CONVEYOR + PALLET
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | |
| 3 - ST | |
| 4 - ST | |
| 5 - ST | |
| 6 - ST | |
| 7 - ST | |
| 8 - ST | UNLOAD’G |
| Type | Tunnel Type | ||
|---|---|---|---|
| Work Transfer | |||
| Load’g & Unload’g | Auto Loader | ||
| Cycle Time | 40 sec/ea | ||
| Washing pressure | 20 kg/㎠ | ||
| Rinsing pressure | 20kg/㎠ | ||
| Max. contaminate | Maker specification | ||
| Air Blow pressure | 2.5 ~ 3.5 kg/㎠ | ||
| Filtering System | 1st | Drum Filter. 60μ | |
| 2nd | Bag Filter. 25μ | ||
| 3rd | Not | ||
| Bed | BEDでは溶接構造物で耐久性及び精度安定化 | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | Water | Dirty Tank. 2500L Clean Tank. 2000L |
| Air | 27,000 L/min | ||
TURBINE HSG 180HP WASHING M/C
TRANSFER TYPE : PALLET
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | WASH’G |
| 3 - ST | AIR BLOW |
| 4 - ST | UNLOAD’G |
| Type | Tunnel Type | ||
|---|---|---|---|
| Work Transfer | Slide(with Pallet) + Auto Loader | ||
| Load’g & Unload’g | Auto Loader | ||
| Cycle Time | 83 sec/ea | ||
| Washing pressure | 20 kg/㎠ | ||
| Rinsing pressure | 20kg/㎠ | ||
| Max. contaminate | Maker specification | ||
| Air Blow pressure | 2.5 ~ 3.5 kg/㎠ | ||
| Filtering System | 1st | Drum Filter. 60μ | |
| 2nd | Bag Filter. 25μ | ||
| 3rd | Not | ||
| Bed | BEDでは溶接構造物で耐久性及び精度安定化 | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | Water | Dirty Tank. 2500L Clean Tank. 2000L |
| Air | 27,000 L/min | ||
