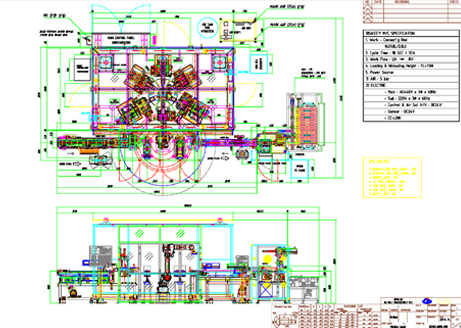

DISASSEMBLY M/C

INDEX TYPE

STN NAME
1 - ST LOAD’G
2 - ST BOLT DISASS’Y
3 - ST CAP & ROD SEPARAT’G
4 - ST DEMAGNETIZ’G
5 - ST VIBRATE & BLOW’G
6 -ST BOLT ASS’Y
7 - ST UNLOAD’G
8 -ST MEASURING
SPECIFICATION
Type Index, Servo Motor
Work Transfer Index + Robot +Conveyor
Load’g & Unload’g Robot
Cycle Time 9 sec/ea
Utility Voltage 220/380/415/440 3P 60Hz
Air 27,000 L/min

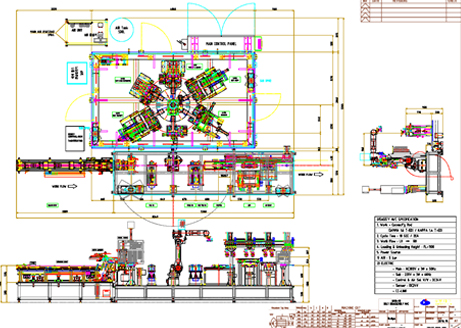

DISASSEMBLY M/C

INDEX + CONVEYOR + ROBOT

STN NAME
1 - ST LOAD’G
2 - ST BOLT DISASS’Y
3 - ST CAP & LOR SEPARAT’G
4 - ST DEMAGNETIZ’G
5 - ST CHIP DISCHARGE
6 -ST BOLT ASS’Y
7 - ST UNLOAD’G
SPECIFICATION
<
Type Index, Servo Motor
Work Transfer Index + Robot +Conveyor
Load’g & Unload’g Robot
Cycle Time 9 sec/ea
Utility Voltage 220/380/415/440 3P 60Hz
Air 27,000 L/min

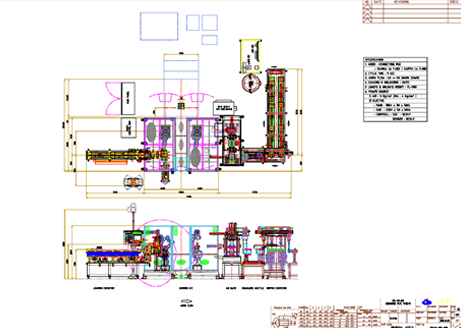

HONNING M/C

CONVEYOR +ROBOT

STN NAME
1 - ST IN CONVEYOR
2 - ST MODEL CHECK
3 - ST ROBOT LOD/UNLOD
4 - ST AIR BLOW
5 - ST BUFFER CONVEYOR
6 -ST UNLOAD’G
SPECIFICATION
Type Buffer TYPE
Work Transfer Transfer + Auto Loader + Robot
Load’g & Unload’g Auto Loader
Cycle Time 9 sec/ea
Utility Voltage 220/380/415/440 3P 60Hz
Air 27,000 L/min

TURBINE HSG 180HP SLITTING M/C

STN NAME
SPECIFICATION
Type Semi Auto
Work Transfer
Load’g & Unload’g Auto Loader
Cycle Time 104 sec/ea
Utility Voltage 220/380/415/440 3P 60Hz
Air 27,000 L/min

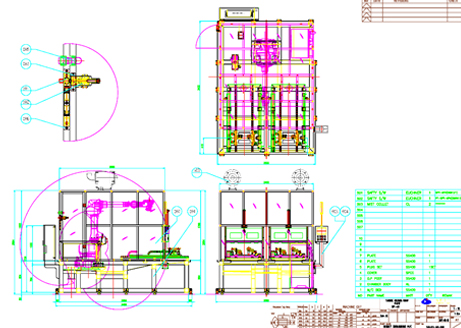

TURBINE HSG 180HP ROBOT DEBURRING M/C

STN NAME
SPECIFICATION
Type Robot
Work Transfer
Load’g & Unload’g Auto Loader
Cycle Time 83 sec/ea
Utility Voltage 220/380/415/440 3P 60Hz
Air 27,000 L/min
