PRODUCT
PRESS & ASS'Y M/C

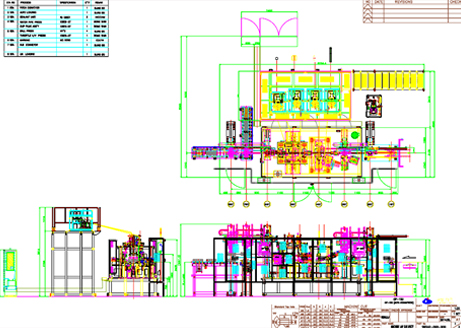

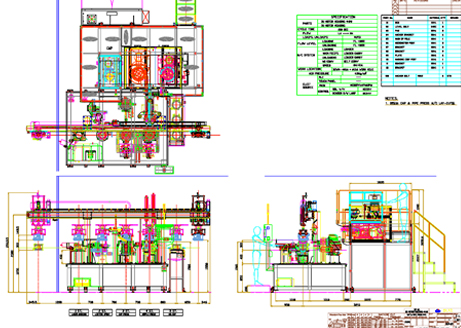

D16DTF ASS’Y & PRESS M/C
CONVEYOR + PALLET
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | AUTO LOAD’G |
| 3 - ST | SEALANT SPRAY apply |
| 4 - ST | WATER PIPE PRESS & CUP PLUG PRESS |
| 5 - ST | BALL PRESS & THROTTLE V/V PRESS |
| 6 - ST | MARK’G &AUTO UNLOA’D |
| 7- ST | NG CONVEYOR |
| Type | Full Auto | ||
|---|---|---|---|
| Work Transfer | Conveyor + Auto Loader | ||
| Load’g & Unload’g | Auto Loader | ||
| Cycle Time | 160 sec/ea | ||
| Bed | Welded structure | ||
| Ass’y Unit | - | ||
| Press Unit | Hyd or Servo press | ||
| Parts feeder | Auto parts feeding | ||
| SPC | Torque and Pressure data | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | |
| Air | 27,000 L/min | ||

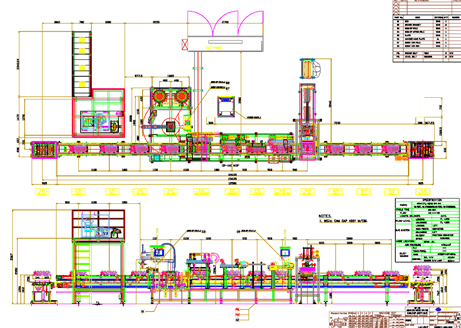

D16DTF CAM CAP ASS’Y M/C
CONVEYOR + PALLET+ROBOT
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | IDLE |
| 3 - ST | CAM LOAD’G |
| 4 - ST | IDLE |
| 5 - ST | NUT RUNNER |
| 6 -ST | MARKING |
| 7 -ST | OUT TURN & N.G OUT |
| 8 -ST | CAM SUPPLY |
| 9 -ST | BOLT SUPPLY |
| 10 -ST | UNLOAD’G |
| Type | Full Auto | ||
|---|---|---|---|
| Work Transfer | Work Pallet Return Conveyor + Auto Loader | ||
| Load’g & Unload’g | Robot . Fanuc 165Kg | ||
| Cycle Time | 160 sec/ea | ||
| Bed | Welded structure | ||
| Ass’y Unit | Giken Nut runner or Maker specification | ||
| Press Unit | - | ||
| Parts feeder | Auto parts feeding | ||
| SPC | Torque | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | |
| Air | 27,000 L/min | ||

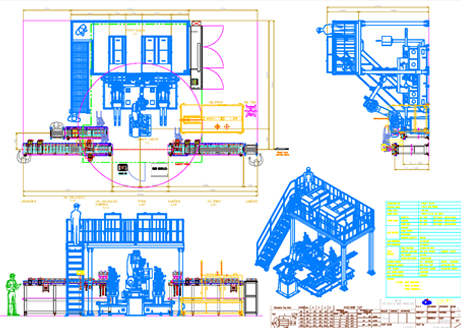

D16DTF VALVE GUIDE & SEAT PRESS M/C
CONVEYOR + PALLET+ROBOT
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | OIL SPRAY & Air Blow |
| 3 - ST | ROBOT LOAD’G |
| 4 - ST | PRESS |
| 5 - ST | PARTS FEEDER |
| 6 -ST | MARKING |
| 7 -ST | UNLOAD’G |
| Type | Full Auto, Robot Loading & Unloading, Servo Press | ||
|---|---|---|---|
| Work Transfer | Work Pallet Return Conveyor + Robot | ||
| Load’g & Unload’g | Robot . Fanuc 165Kg | ||
| Cycle Time | 160 sec/ea | ||
| Oil Tank 압력 | 0.5 ~ 20 kgf/cm² | ||
| Bed | Welded structure | ||
| Ass’y Unit | - | ||
| Press Unit | Hyd or Servo press | ||
| Parts feeder | Auto parts feeding | ||
| SPC | Pressure data | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | |
| Air | 27,000 L/min | ||

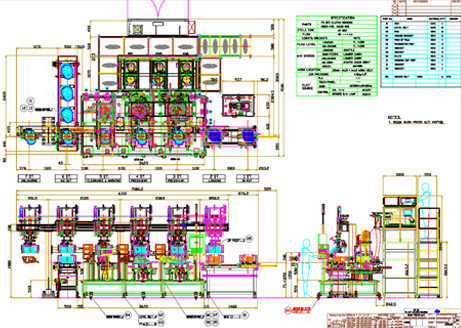

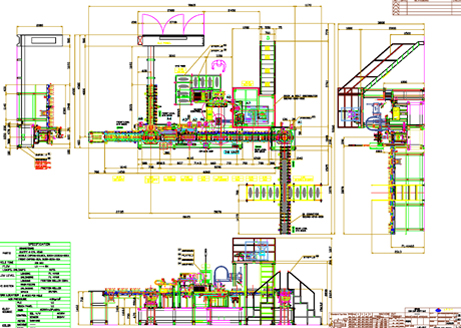

DCT CLUCH HOUSING BUSH PRESS M/C
TRANSFER TYPE : CONVEYOR + PALLET
| STN | NAME |
|---|---|
| 1 - ST | IN PUT |
| 2 - ST | LOAD’G |
| 3 - ST | PRESS |
| 4 - ST | PRESS |
| 5 - ST | CLEARANCE & MARK’G |
| 6 -ST | NG OUT |
| 7 -ST | UNLOAD’G |
| Type | Transfer (Slide Carry) Type | ||
|---|---|---|---|
| Work Transfer | Pallet Conveyor + Auto Loader | ||
| Load’g & Unload’g | Auto Loader | ||
| Cycle Time | 47 sec/ea | ||
| Bed | Welded structure | ||
| Ass’y Unit | - | ||
| Press Unit | Hyd or Servo press | ||
| Parts feeder | Auto parts feeding | ||
| SPC | Pressure data | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | |
| Air | 27,000 L/min | ||

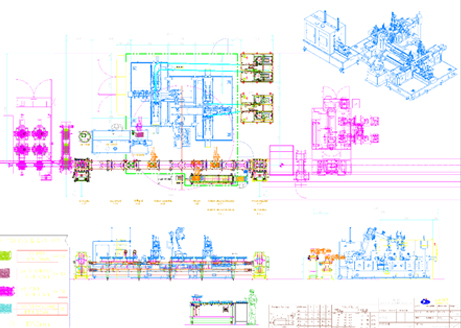

DU MOTOR HOUSING PLUG PRESS M/C
TRASFER TYPE
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | LASER MARK’G |
| 3 - ST | LOCTITE SPRAY |
| 4 - ST | CAP PRESS |
| 5 - ST | NIPPLE PRESS |
| 6 -ST | NG CONVEYOR |
| 7 -ST | UNLOAD’G |
| Type | Full Auto | ||
|---|---|---|---|
| Work Transfer | Auto Loader + Belt Conveyor | ||
| Load’g & Unload’g | Auto Loader | ||
| Cycle Time | 200 sec/ea | ||
| Bed | Welded structure | ||
| Ass’y Unit | - | ||
| Press Unit | Hyd or Servo press | ||
| Parts feeder | Auto parts feeding | ||
| SPC | Pressure data | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | |
| Air | 27,000 L/min | ||
GW VALVE GUIDE & SEAT PRESS M/C
CONVEYOR + PALLET+ROBOT
GW CYL-HEAD 6 & 8 CYL
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | OIL SPRAY |
| 3 - ST | MODEL CHECK |
| 4 - ST | ROBOT LOAD’G |
| 5 - ST | EXHAUST PRESS |
| 6 -ST | INTAKE PRESS |
| 7 -ST | NG EJECT |
| 8 -ST | UNLOAD’G |
| Type | Full Auto, Robot Loading & Unloading, Servo Press | ||
|---|---|---|---|
| Work Transfer | Work Pallet Return Conveyor + Robot | ||
| Load’g & Unload’g | Robot . Fanuc 165Kg | ||
| Cycle Time | 50 ~ 150 sec/ea | ||
| Filtering System | 1st | Drum Filter. 60μ | |
| 2nd | Bag Filter. 25μ | ||
| 3rd | Not | ||
| Bed | Welded structure | ||
| Ass’y Unit | - | ||
| Press Unit | Hyd or Servo press | ||
| Parts feeder | Auto parts feeding | ||
| SPC | Pressure data | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | HYD’ |
| Air | 27,000 L/min | ||
GW VALVE GUIDE & SEAT PRESS M/C
CONVEYOR + PALLET
GW CYL-HEAD 6 & 8 CYL
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | IDLE |
| 3 - ST | MODEL CHECK |
| 4 - ST | CAP SUPPLY |
| 5 - ST | NUT RUNNER |
| 6 -ST | MARKING |
| 7 -ST | VISION |
| 8 -ST | NG EJECTOR |
| 9 -ST | IDLE |
| 10 -ST | UNLOAD’G |
| Type | Full Auto | ||
|---|---|---|---|
| Work Transfer | Work Pallet Conveyor + Auto Loader | ||
| Load’g & Unload’g | Auto | ||
| Cycle Time | 180 sec/ea | ||
| Bed | Welded structure | ||
| Ass’y Unit | Giken Nut runner or Maker specification | ||
| Press Unit | - | ||
| Parts feeder | Auto parts feeding | ||
| SPC | Torque | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | |
| Air | 27,000 L/min | ||

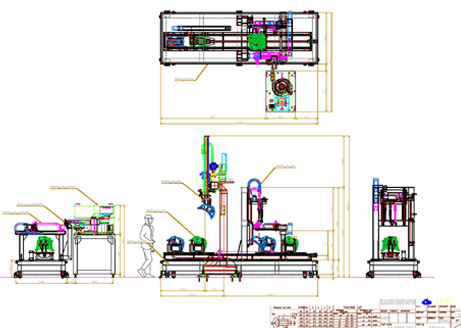

SHOCK ABSORBER HSG
TAPPING NUT ASS’Y M/C
CONVEYOR + PALLET
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | NUT RINNER |
| 3 - ST | NG CONVEYOR |
| 4 - ST | UNLOADING |
| 5 - ST | RH ASS’Y |
| 6 -ST | LH ASS’Y |
| Type | Transfer Type (Slide Carry) | ||
|---|---|---|---|
| Work Transfer | Transfer (Slide Carry) | ||
| Load’g & Unload’g | Auto Loader | ||
| Cycle Time | 77 sec/ea | ||
| Bed | Welded structure | ||
| Ass’y Unit | Giken Nut runner or Maker specification | ||
| Press Unit | - | ||
| Parts feeder | Auto parts feeding | ||
| SPC | Torque | ||
| Utility | Voltage | 220/380/415/440 3P 60Hz | |
| Air | 27,000 L/min | ||
