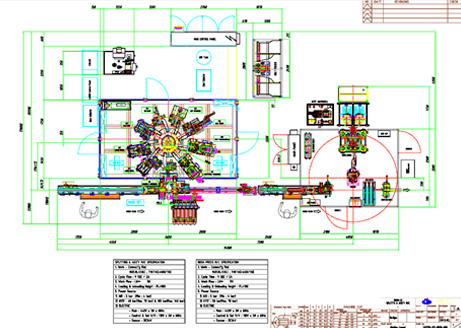

SPLITTING & ASS'Y M/C
SPLITTING & ASS’Y M/C
INDEX + CONVEYOR +ROBOT
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | LASER NOTCH |
| 3 - ST | SPLITTING |
| 4 - ST | AIR BLOW |
| 5 - ST | CHIP DISCHARGE |
| 6 -ST | BOLT INSERT |
| 7 -ST | BOLT 가체결, 본체결 |
| 8 -ST | TRANSFER |
| 9 -ST | BUSH ORIENTATION |
| 10 -ST | BUSH 압입 |
| 11 -ST | 소단부 오일홀 체크 |
| 12 -ST | UNLOAD’G |
| Type | Index Type | ||
|---|---|---|---|
| Work Transfer | Index(With Lift) + Conveyor + Robot | ||
| Load’g & Unload’g | Robot | ||
| Cycle Time | 9 sec/ea | ||
| Filtering System | 1차 | - | |
| 2차 | - | ||
| 3차 | - | ||
| Utility | 전원 | 220/380/415/440 3P 60Hz | HYD’ | 40 BAR & 105 BAR & 50BAR |
| Air 량 | 27,000 L/min | ||

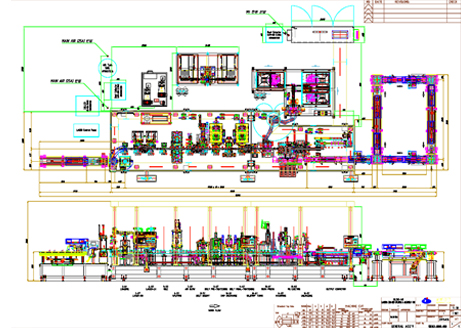

SPLITTING & ASS’Y T/M
TRANSFER +ROBOT
| STN | NAME |
|---|---|
| 1 - ST | LOAD’G |
| 2 - ST | LASER –RH/LH |
| 3 - ST | IDLE |
| 4 - ST | SPLITTING |
| 5 - ST | AIR BLOW |
| 6 -ST | BOLT INSERT |
| 7 -ST | BOLT PRE-TIGHTENING |
| 8 -ST | CHIP DISCHARGE |
| 9 -ST | BOLT FINAL-TIGHTENING |
| 10 -ST | IDLE(180 TURN) |
| 11 -ST | BUSH PRESS |
| 12 -ST | MASURING |
| 13 -ST | NG EJECTOR |
| 14 -ST | UNLOAD’G |
| Type | Transfer (LIFT & CARRY) | ||
|---|---|---|---|
| Work Transfer | Conveyor + Auto Loader +ROBOT | ||
| Load’g & Unload’g | Auto Loader | ||
| Cycle Time | 9 sec/ea | ||
| Filtering System | 1차 | - | |
| 2차 | - | ||
| 3차 | Not | ||
| Utility | 전원 | 220/380/415/440 3P 60Hz | |
| Air 량 | 27,000 L/min | ||
